Practical Schema Engineering: Tools and Techniques for schema-aware Kafka applications

In order to create the actual schema document, i.e. an avsc-file in the case of AVRO schemas, there are two basic options:

Both approaches have their respective advantages and drawbacks. If the starting point is a Java or Kotlin domain model, then the full expressiveness of the underlying programming language can be used in the model, i.e. inheritance, composition. In the case of a Kotlin domain model, even the nullability information of Kotlin’s type system can be used to create optional AVRO types. See the avro4k library for an example of such capabilities. A slight advantage for the schema-first approach is that the majority of tools as well as documentation/tutorials seems to accept this as the default approach, so it is maybe a bit easier to adopt.

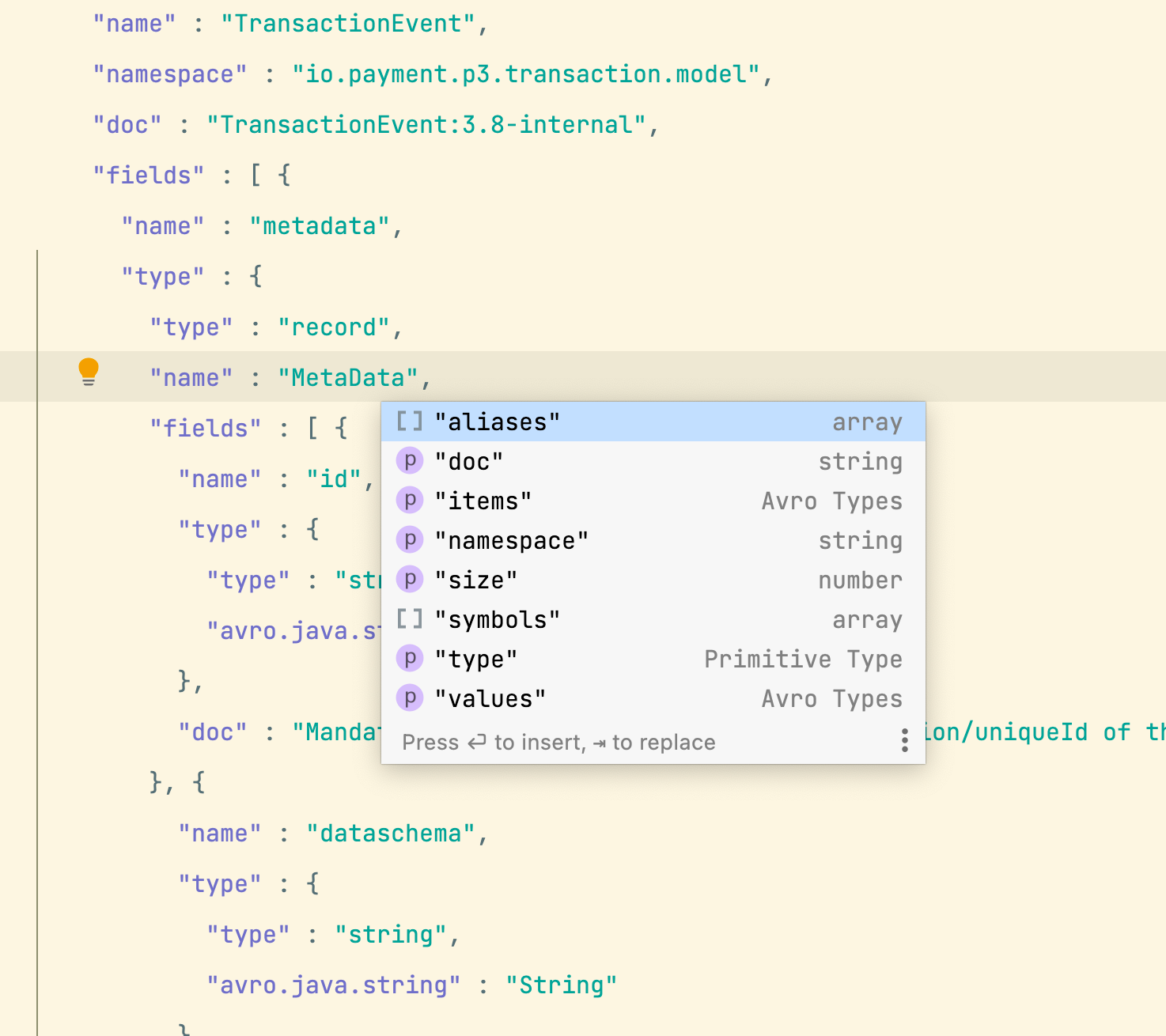

A schema-first approach comes with its own special set of implications. It is relatively cumbersome to maintain a large schema as the work has to be done at the textual abstraction level. This is partly alleviated by the capabilities of IDEs. In addition to the standard support for highlighting basic JSON validation errors some IDEs allow users to register the AVRO grammar (a form of 'metaschema' with respect to the domain schema) and thus offer some basic code helping features (see image below). Still, the AVRO grammar has limited expressiveness, e.g. the concept of optionality has to be emulated by a union between the actual type and null. Moreover, even with such IDE support, some important aspects, such as edit-time type safety are not well-supported as shown in the next section.

While code-helping support is very useful when composing a schema by hand, its ability to detect errors is also rather limited. Here, a simple smoke test can be a live-saver when a large and/or complex schema is edited. Even in small schema documents such as the avsc snippet below (a slight modification of an example from the official AVRO guide) some errors can be hard to spot. Everything seems to look good: it is valid JSON and the IDE-based avsc-schema-checker does not complain.

So let’s run the following smoke test against this innocent-looking schema document after performing some manual changes.

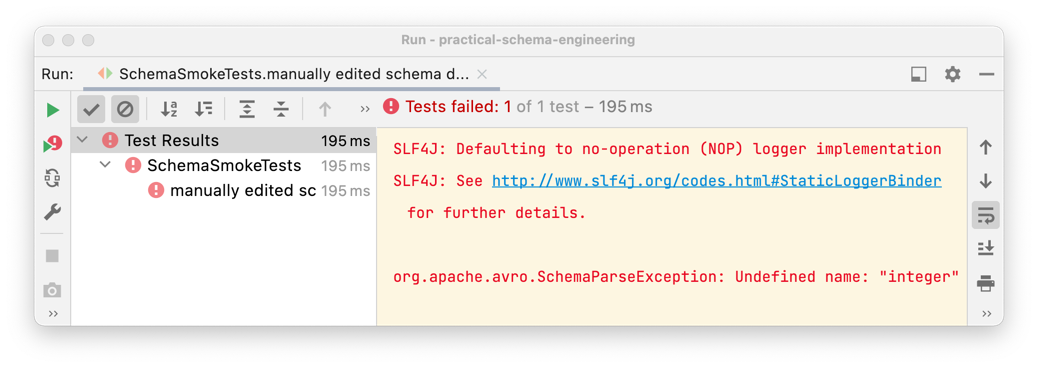

Alas, the test fails and we are alerted to a typing error in the schema (integer instead of the correct int)!

Of course, carefully modelling a schema to represent the domain correctly is still a challenging human activity, but the combination of JSON validation, AVRO metaschema awareness of the IDE, and such a simple smoke test goes a long way to make this activity less error-prone and frustrating.

If such a schema is to be used in producer, consumer, or streaming projects then it is often helpful to generate a domain model from the schema. For JVM-based projects the Apache AVRO library can be employed for this. The avro-tools jar included in the distribution may be used for code generation and a number of other features such as conversions between various AVRO representations. In an automated build, the usage of an additional Gradle plugin can be very helpful (e.g. https://github.com/davidmc24/gradle-avro-plugin).

It should be noted that there might be cases where the generation of a domain model from the schema can be omitted, especially for schemas which are small or of a simple structure or in the realm of dynamically typed programming languages. Even when working in a statically typed langage such as Java or Kotlin it is possible to work with the generic types org.apache.avro.generic.IndexedRecord and org.apache.avro.generic.GenericRecord from the Apache AVRO library which allow for index- or name-based access to fields instead of creating an explicit domain model. In most cases, however, the generation of an explicit model should be of advantage.

While many tutorials emphasize the quasi-standard tooling from Apache AVRO to start with a schema and generate Java classes from it, the opposite direction is also possible - and may be simpler and more elegant in many cases [CodeFirst].

In the following we will give a small Kotlin-based example to illustrate the code-first approach, taken again from a payment project. It utilizes the avro4k library which is an extension of Kotlin’s serialization framework. The kotlinx.serialization component also provides a gradle plugin which is run transparently during the compilation process.

In the Kotlin dataclass above, the @Serialization annotation marks the class as a candidate for serialization. The @Avro* annotations are offered by the avro4k libary to control various aspects of the schema generation process. Avro4k also provides a simple bridge to the Apache Avro data structure org.apache.avro.generic.GenericRecord via this utility method: com.github.avrokotlin.avro4k.Avro#toRecord(). This GenericRecord can then be used together with Confluent’s (de)serializers. Accessing the generated schema is equally simple using the following method: com.github.avrokotlin.avro4k.Avro#schema(). The schema text is in avsc format and can then be stored as a file for subsequent registration (see below).

It might be tempting not to extract the schema file at all but to rely on auto-registration capabilities offered by some serializers at the time of first message creation. While this is technically possible and may be acceptible for very simple schemas and during early development or on non-production stages, many of the intended schema-related benefits (such as fast failure) would be lost.

This approach avoids an explicit generation step during the build like the one required for generating Java classes from a schema. Moreover, the expressiveness of programming languages and the IDE tooling for working with Java or Kotlin codebases are much more advanced than that for working with JSON-based avsc schemas. For large and/or complex schemas this can make a huge difference.

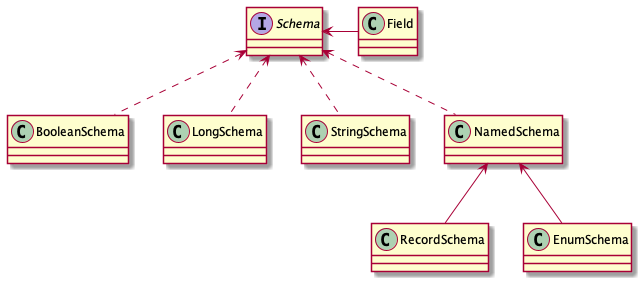

While the schema- or code-first approaches described above are widely used and should be sufficient for most applications, there is also a little-known alternative: Building up a schema model by coding against an API. The ubiquituous Apache Avro library allows just that. The following class diagram shows the org.apache.avro.Schema interface and a small yet representative subset of its 24 inner (sub)classes which implement the AVRO schema API.

As an example, we will create a very small AVRO schema programmatically. This model consists of a single record with three differently typed fields only but should suffice to show the technique in principle. Imagine that we would like to model a simplified 'incident', i.e. the occurrence of an urgent problem in a running software system. This is a typical example for a messaging payload: a distinct event happening at a certain point of time. The concrete task is then to create the following avsc file using the apache AVRO schema APIs:

In the following test we build up the schema programmatically and then compare it to the avsc text file.

Related techniques also allow for programmatic manipulation of schemas created by traditional (code-first or schema-first) means. In our project we used such an approach to automatically read an existing schema, manipulate it programmatically, and save it back. The automatic manipulation step consisted of adding several hundred possibilites for an ENUM to a certain field. Those values originated in another system and would have been very cumbersome and error-prone to maintain with a manual text-only approach. In a similar vein, we also employed such a technique to remove some specially marked fields of a large schema in a compatible way in order to produce a special variant of the schema. In this way, a family of schemas with varying content but guaranteed compatibility relationships can be created and maintained. This can be seen as a form of variability management for schemas [SPLE].

A programmatic approach can also be used for AVRO schema creation if another kind of model (say XML schema or some form of database schema) is the source of model truth and no other means of conversion exist. While not recommended as a generic method to create new schemas from scratch, a programmatic approach can simplify conversion from other schema representations (or variability management for large and 'similar' schemas) in selected situations.

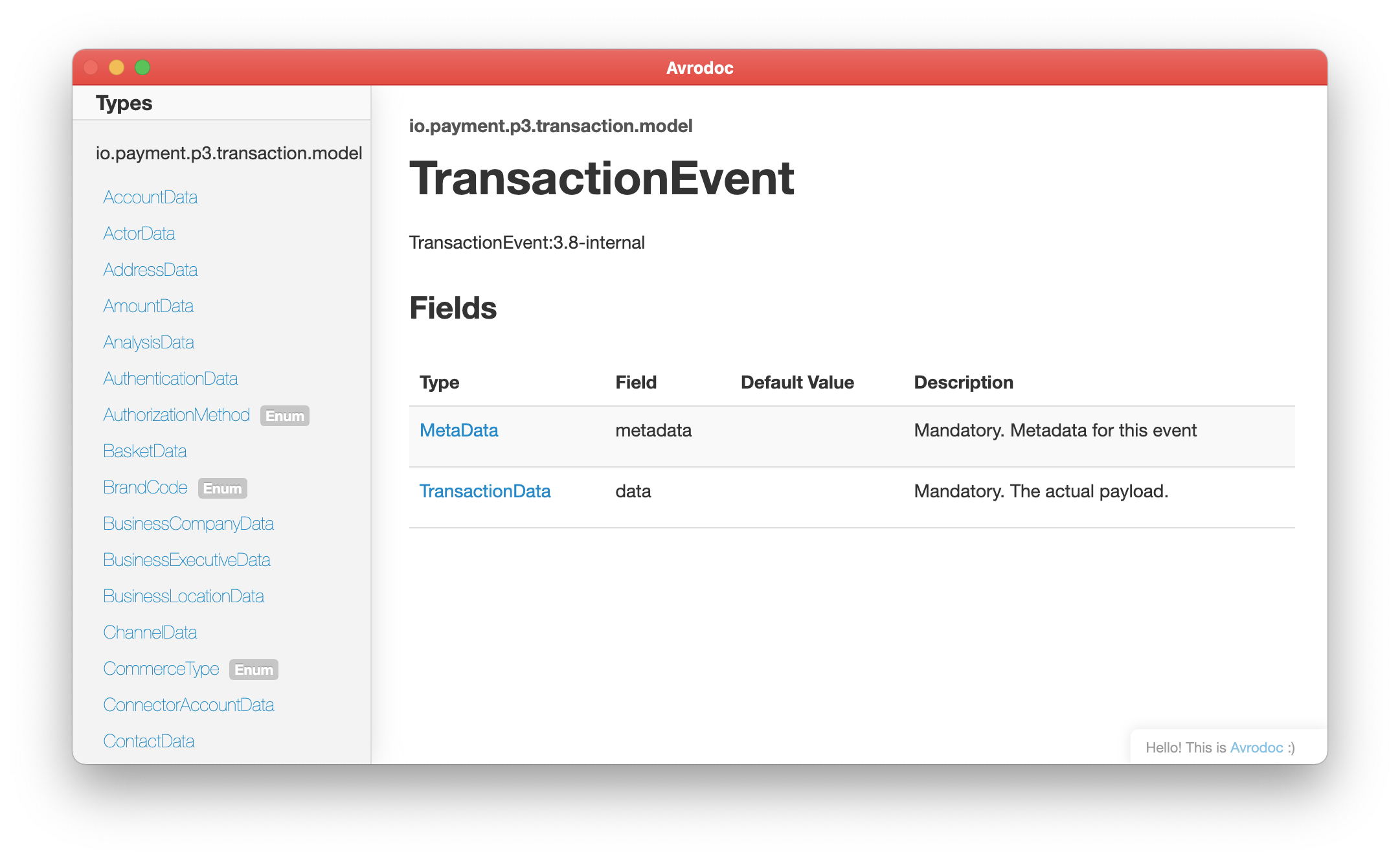

In the Java world, Javadoc is a ubiquitous tool for such an automated creation of browsable documentation. In a similar vein there is a tool named 'Avrodoc' for the Apache Avro space. Originally created by Martin Kleppmann himself in 2012, it is not actively maintained anymore but a number of forks exist which can be executed in a docker container with moderate effort. Avrodoc reads a number of avsc files and generates an SPA from it in one self-contained HTML document. This generation can be run for every change during a standard automatic build. Technically, Avrodoc reads in the "doc" keys containing a description for every type. Needless to say the quality of the resulting documentation depends heavily on the human-edited domain-related descriptions. Other information such as domain datatype, technical type (e.g. enum, union, map etc), optionality, or default values can be inferred from the schema as well resulting in a complete functional and technical specification of the schema. For an example generated from a detailed schema for financial transactions see the following image.

The output of this tool is especially important for large schemas with tens or hundreds of types. It can easily be deployed and used for communication with domain experts within a team as well as for technical teams consuming data streams based on the schema in question.

While avrodoc works well it is not really supported anymore. A more modern alternative is the usage of asyncAPI specifications. Such specifications have a much wider scope than just schema documentation. They represent complete descriptions of asynchronous systems, roughly comparable to OpenAPI (Swagger) for REST systems [asyncAPI], and details are thus beyond the scope of this article. However, the asyncAPI tooling is up-to-date and maintained, and the specification allows for referencing AVRO schemas when describing the payload of messages. The asyncapi generator tool will then embed a browsable documentation of the AVRO schema.

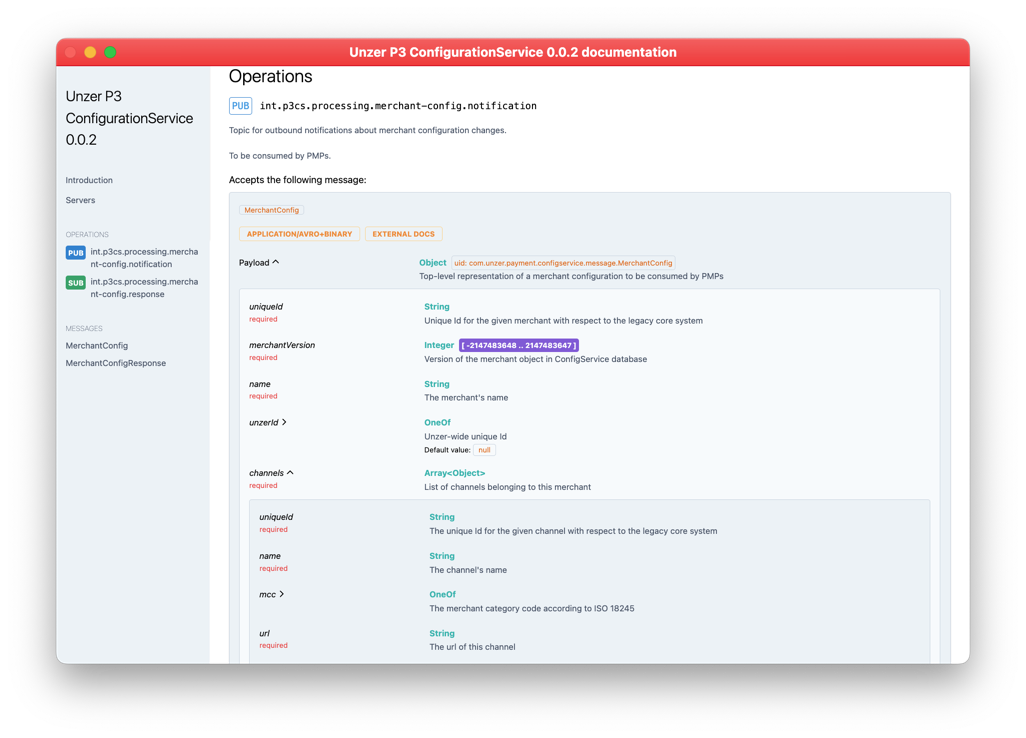

An example from a simple use case in the payment domain with a medium-sized schema can be seen in the following image.

In one of our use cases with an especially large and nested schema with frequent changes it has also proved beneficial to model metadata explicitly and in a uniform way. An emerging standard for defining the format of event data is the CloudEvents specification (at version 1.0.2 at the time of writing).

This specification prescribes important metadata, such as event id, creation timestamp, and a reference to the (AVRO) schema. When such metadata is used for all topics on a company scale it provides one important building block for a data catalogue. In the future, standardized metadata may also play a crucial role connecting systems of different enterprises [Flow].

While there is a small overlap beetween the AsyncAPI and CloudEvents specifications they serve different purposes: the former includes information on the whole event-driven systems such as servers or security mechanisms. The latter focus on the structure of the events themselves. The former may include a reference to the whole schema, i.e. the domain aspect of an event, the latter is restricted to the technical aspects shared by all events of a given topic. Together both spefications can be viewed as simple building blocks for discoverability and self-description, thus providing some first steps towards a data mesh [DataMesh].

The systematic approach to schema compatibility in the Kafka space was pioneered by Confluent, who also drive much of the development of the Kafka broker itself. In order to reap the benefits of schema engineering at run-time, a special component, called schema registry is needed. Such a registry enables Kafka clients to check whether incoming messages are compatible with their local expectations. Compatibility is a rather broad term and a fine-grained model of compatibility levels can help with an adequate reaction to changing schemas. The Confluent schema compatibility model [Evolution] includes the following nuances:

Apparently, there are three basic classes of compatibility modes, each coming in two flavors. Generally, the TRANSITIVE postfix implies that compatibility is checked against all previous versions along the schema history, while the simple versions (without said postfix) require checks against the last version only.

While only optional fields may be added but all fields may be deleted for BACKWARD compatibility, FORWARD compatibility allows optional fields to be deleted, and all fields to be added. As the name implies, the FULL compatibility modes embody the strongest guarantees, hence the least changes are allowed, i.e. addition and deletion of optional fields only. The benefit of this strict compatibility checking is that producer and consumer updates can be done in any order.

The main reason for employing such a compatibility model, and indeed the whole schema-based apprach, is the ability to perform controlled migrations of producer and consumer systems. In this context, a forward migration requires producers to be updated first while a backward migration requires consumers to be updated first.

One major advantage of a schema-centric approach is the ability to do schema compatibility analysis and migration in a controlled way.

The following listing shows a simplied JUnit test for checking certain compatility levels between the current (version 3.8) and the last (version 3.7) versions of a schema.

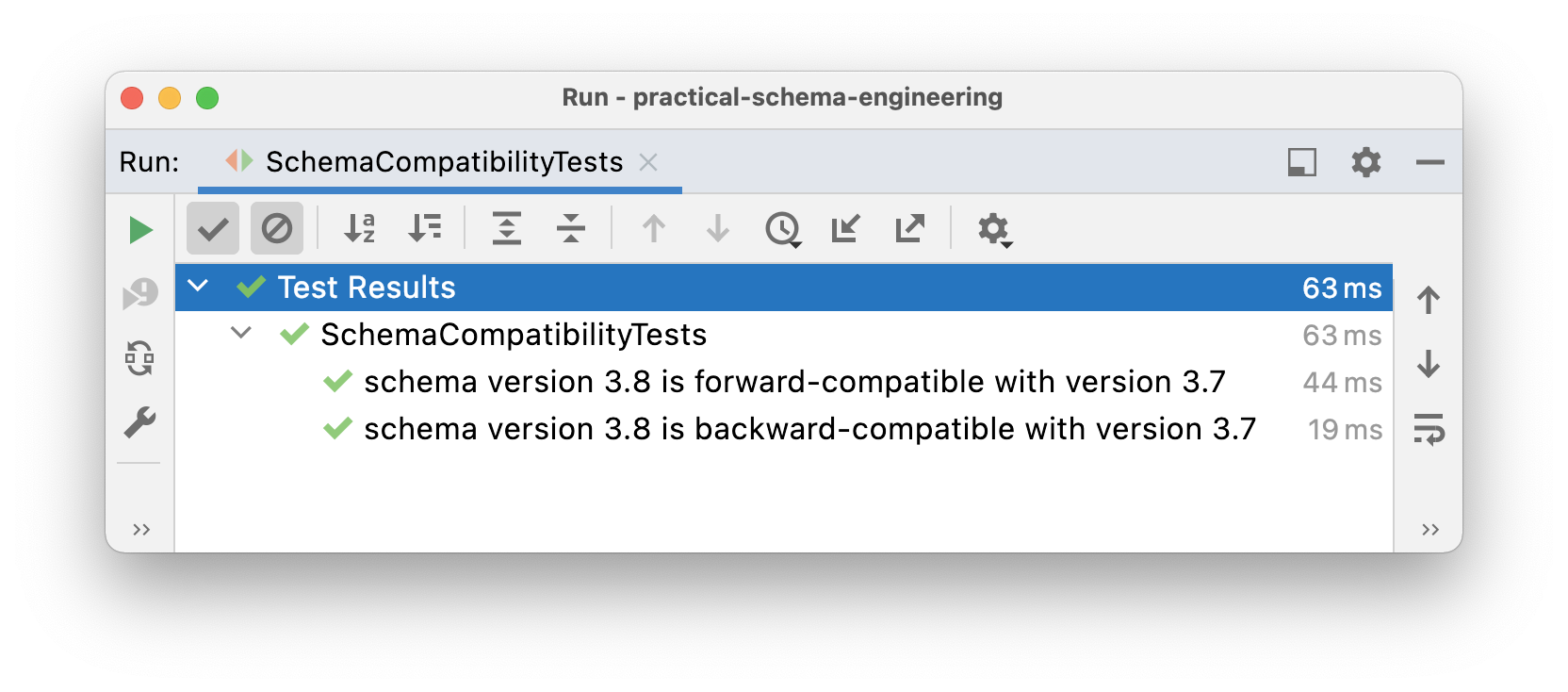

Such a test can be run in an IDE (as well as in a CI build) in the usual way:

This approach has a huge benefit: Fast Failure. It allows for finding unintended schema compatibility breaches early at development time and not only at schema registration time. Such fast feedback can save considerable trouble when handling non-trivial schemas.

A major improvement to operating software has been the move in recent years towards infrastructure as code (IaC). This implies the definition of infrastructure components in a textual format which can be versioned and collaborated upon. Such definitions are then executed against a production requirement in an automated and reproducible manner - a huge improvement over ad-hoc manual changes to infrastructure. There are many such tools (Ansible, Puppet, Terraform) and various different approaches. Often a dedicated configuration language with deliberately limited expressiveness is used such as the Hashicorp Configuration Language (HCL) for Terraform but recently libraries for expression infrastructure concerns in the main programming language have emerged, e.g. AWS CDK.

Today, Kafka servers are increasingly hosted by specialized or general cloud companies, the most prominent examples being Confluent Cloud, Aiven for Kafka, and AWS MSK. These offerings vary greatly in terms of features, maturity, and level of abstraction and a comparison is naturally beyond the scope of this article. All of them offer a schema registry service to manage schemas and their evolving versions at run-time. This was pioneered by Confluent, but open source alternatives (e.g. Karapace by Aiven) or proprietary systems (such as the Glue Registry by AWS) exist.

While those hosted Kafka systems usually offer a GUI to define elements such as topics, users, ACLs, and schemas it is highly preferable to define these building blocks in an IaC approach. Here, we are particularly interested in managing schemas. In our projects we had a good experience with deploying the schemas to the schema registry using Aiven’s Terraform provider. If a Kafka cloud vendor does not support Terraform, there are usually other, sometimes proprietary IaC tools. As a last resort, schemas can often be registered via a REST service offered by the cloud vendor. One way or another, automated and reproducible deployment of schemas should be treated with the same care and rigor as automated deployments of any other software component.
